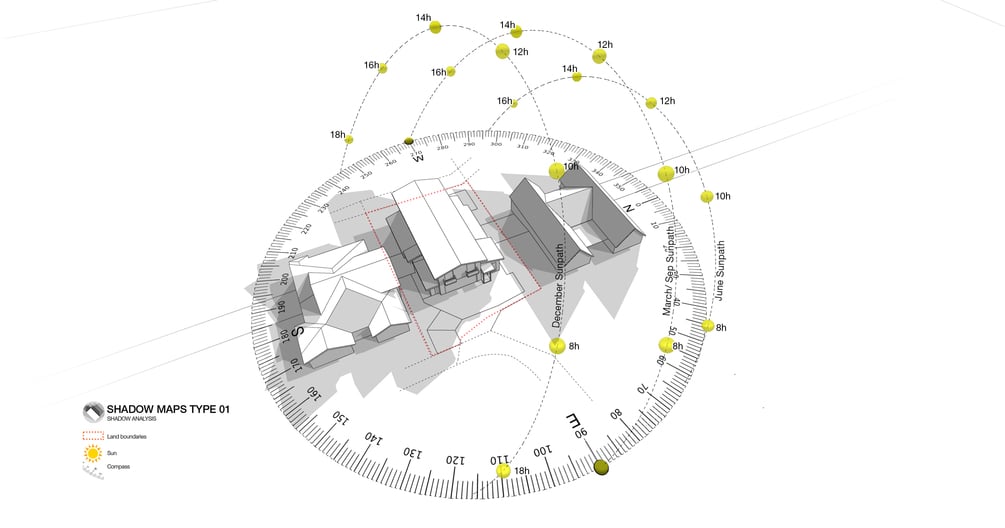

The workflow creates an architectural diagram for the project.

Can be create:

1. Shadow diagram
2. Solar study
3. Shadow analysis
4. and more

Software used:

1. SketchUp: Modeling and editing sun paths, winds, views, etc.
2. Photoshop: Editing images exported from SketchUp, creating animations for the sun and wind.

(This tutorial is simpler than the Architectural Diagram Tutorial because it only has the path of the Sun and the motion of the Sun)

Tutorial (step-by-step guide and videos):

1. Determine the coordinates of the location research
2. Add location for model research with coordinates ( in SketchUp software)
3. Add Sun path and customize with coordinates
4. Set up the scenes to export files and motion shadows
5. Export shadow animation (SketchUp 2023)
6. Create motion for the Sun ( in Photoshop software)
7. Final results

Full Tutorial at link https://sundiagram.com/sun-path-diagram

or Youtube link: https://youtu.be/m_br1xfjeWg

All files (2D + 3D) used in the tutorial are included
